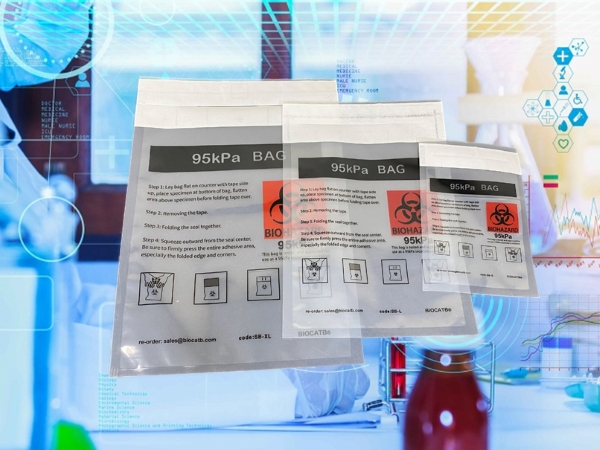

BIO CAT B     UN3373 PI650    95kPa BAG  / JAR  RANGE       95 kPa  tested and approved  as per IATA DGR International Regulations BIO  95kPa Jars  PI650  UN3373 IATA Outer carton dims mm CODE: BCB-1                           ( Bottle only  BCB-1B ) 1.2 litre  PI650 UN3373  JAR 105mm wide mouth , int height 150mm 140 x 140 x 175 CODE: BC-2L                            ( Bottle only  BCB-2LB ) 2  litre    PI650 UN3373  JAR 125mm wide mouth, int height  170mm 155 x 155 x 195 CODE: BC-3L                             ( Bottle only BC-3LB ) 3  litre    PI650 UN3373  JAR 125mm wide mouth , int height  255mm 160 x 160 x 280 Alternative to small jar kit  see PK02 below BIOHAZARD BAGS  95kPa  PI650  UN3373 IATA CODE: SB-S SMALL     900 ml biohazard bag     285 x 177mm CODE: SB-L LARGE(medium)   4 litre biohazard bag    420 x 295 mm CODE: SB-XL EXTRA LARGE   8 litre biohazard bag         530 x 365 mm BIOHAZARD BAG KITS COMPLETE   95kPa PI650 UN3373 IATA PK02                          ( Kit boxes only   PK02C ) SMALL 900 ml biohazard bag  kit complete with SB-S 215 x125 x 85 PK04                          ( Kit boxes only   PK04C ) LARGE(medium)  biohazard bag kit complete with SB-L 310 x 200 x 70 PK06                          ( Kit boxes only   PK06C )   LARGE(medium)  biohazard bag kit complete with SB-L 400 x 250 x 105 PK08      ( ideal for  large medical devices)   ( Kit boxes only   PK08C ) X/LARGE biohazard bag kit complete with SB-XL 640 x 280 x 120

Basic triple packaging system.......  Category A , Category B and Exempt
The following system of packaging shall be used for all infectious substances. It consists of three layers as follows:
Primary receptacle. A primary watertight, leak-proof/ sift-proof  receptacle containing the specimen.Max volume 1 litre.
                   Secondary packaging. A second durable 95 kPa tested and approved  receptacle to enclose and protect the primary receptacle with sufficient absorbent product to absorb the fluid from the primary in case of breakage.                                                                                             Secondary to meet all test requirements as per IATA Dangerous Goods Regulations for Air , Road ,  Packing Instruction 650  or 620.
Outer packaging. Secondary packagings are placed into a compliant with  DGR IATA regulations  shipping carton with suitable cushioning material. Outer package must protect the contents from outside influences such as physical damage , moisture , whilst in transit.
One side of the outer package must be at least 100 x100 mm.
